LED Trailer Light Kit install Instruction

Thank you for Purchasing our product! If you have any question about this item, such as missing part/ receive wrong item/ doesn't fit/ don't know How to connect the wires etc. , please feel free to email us by support@auovo.com.



(Professional installation is strongly recommended to avoid trouble caused by inexperienced installer!)

Package includes:
2 pcs stop turn LED tail lights(halo glow and solid light pattern)
2 pcs amber clearance lights
2 pcs wiring harness( 1 pcs 21.65 feet and 1pcs 3.93 feet wiring harness)
1 pcs license plate bracket
some Mounting Hardware.
(Please see the first photos in this listing)

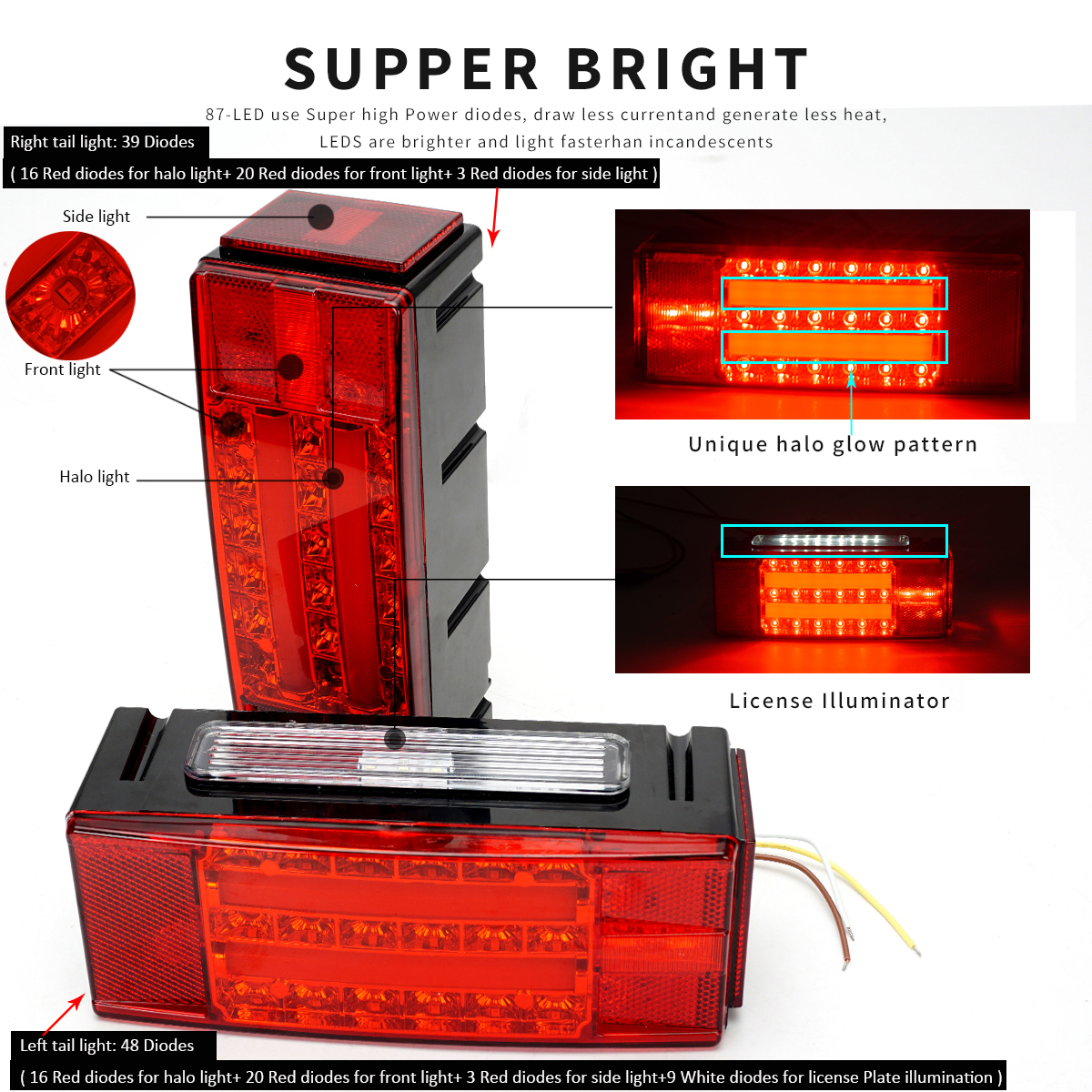

Details of Two Red Lights:
Left tail light: 48 Diodes ( 16 Red diodes for halo light+20 Red diodes for front light+3 Red diodes for side light+9 White diodes for license Plate illumination )
Right tail light: 39 Diodes ( 16 Red diodes for halo light+20 Red diodes for front light+3 Red diodes for side light )

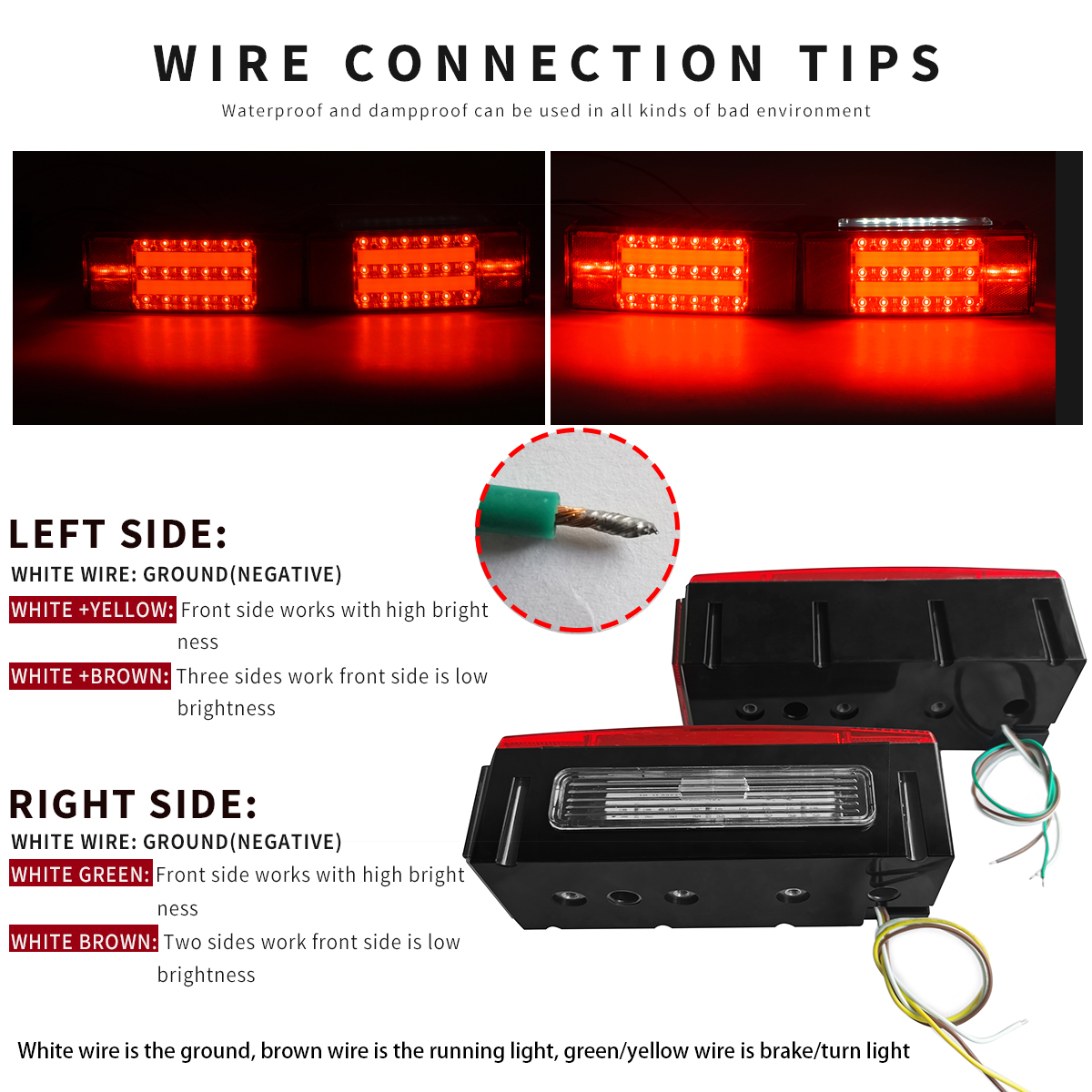

Wires Connection Tips:
Two Red Lights: white wire is the ground, brown wire is the running light, green/yellow wire is brake/turn signal light
Left side: White Wire: Ground; White+Yellow: front side works as high brightness; White+Brown: Three sides work, front side is low brightness.
Right side: White Wire: Ground; White+Green: front side works and is high brightness; White+Brown: Two sides work, front side is low brightness.
Amber Side marker light : gray wire: ground; Yellow wire : the side marker light
Please install the trailer taillights with the drain hole downwards.
